Introduction:

When planning a commercial or utility-scale solar project, engineers spend months selecting the perfect high-efficiency panels and the most reliable inverters. Yet, the component that actually holds this multimillion-dollar investment to the roof—the PV Clamp—is often treated as an afterthought.

This is a dangerous oversight. A solar panel is essentially a large sail. In a storm with 140 km/h winds, a standard 2-meter module can experience uplift forces exceeding 2400 Pascals (Pa). If the clamps fail, the panel doesn’t just break; it becomes a flying projectile.

At Anrele, we manufacture millions of aluminum solar clamps annually. We don’t just extrude metal; we engineer structural integrity. In this guide, we will explore the physics of wind load, the chemistry of corrosion, and why AL6005-T5 is the only alloy you should trust for your solar array.

1. Material Science: Why AL6005-T5 Beats 6063

Most aluminum extrusions (like window frames or heat sinks) are made from 6063-T5 alloy. It is cheap and extrudes easily. However, for structural solar mounting, Anrele uses AL6005-T5. Why the difference? It comes down to Tensile Strength.

• AL6063-T5: Yield Strength ≈ 145 MPa.
• AL6005-T5: Yield Strength ≈ 255 MPa.

The Engineering Reality: AL6005 contains higher amounts of Silicon and Magnesium, making it 75% stronger than standard 6063 aluminum. When a typhoon hits, the clamp ‘teeth’ bite into the solar panel frame. A softer 6063 clamp might deform or ‘stretch’ under the vibration, allowing the panel to slip out.

2. The Chemistry of Corrosion: Avoiding the “Battery Effect”

Solar arrays are installed in harsh environments. This creates the perfect condition for Galvanic Corrosion. When two dissimilar metals (e.g., Stainless Steel and Aluminum) touch in the presence of rainwater (electrolyte), they form a battery, causing the aluminum to corrode.

The Anrele Solution

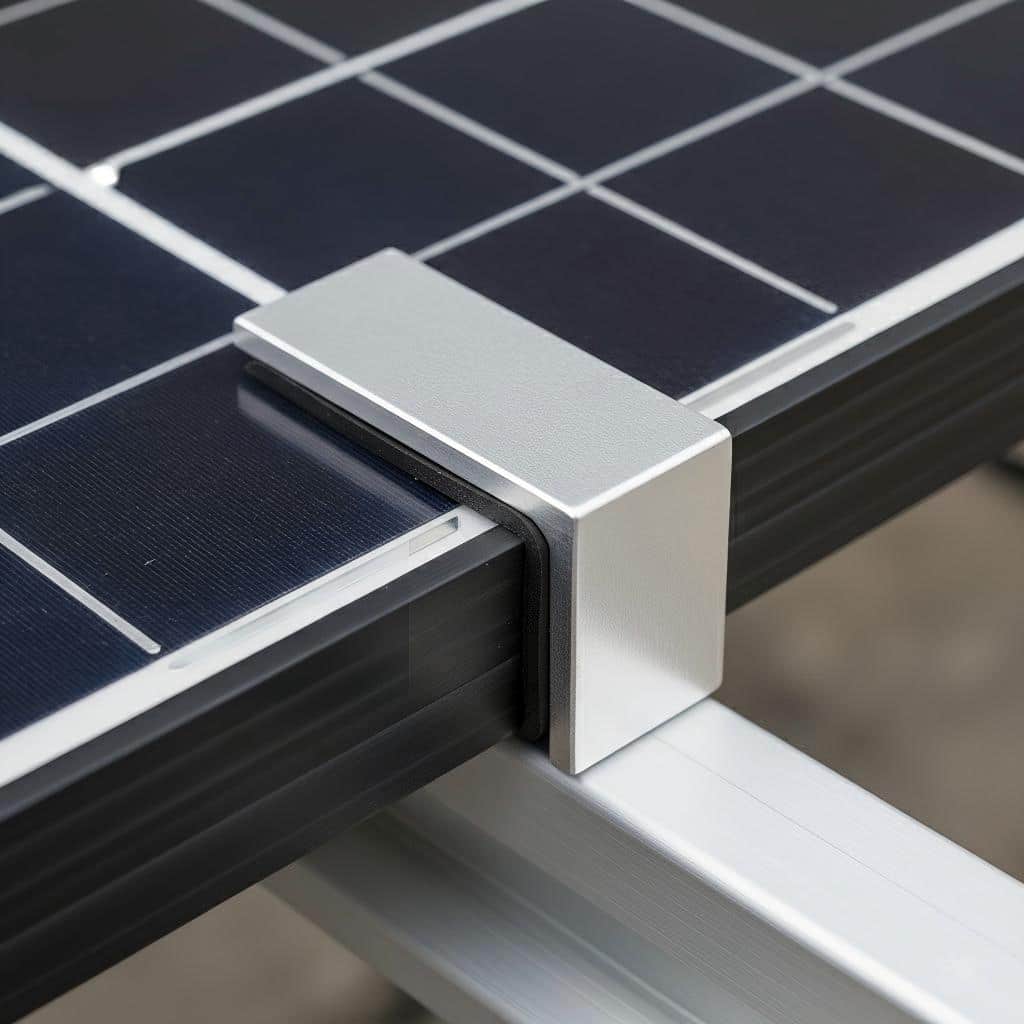

1. Like-for-Like Material: Solar panel frames are Anodized Aluminum. By using Anrele Anodized Aluminum Clamps, you mate identical materials. No potential, no corrosion.
2. Anodization Layer: All Anrele clamps have a 10-15 micron oxide layer. This ceramic-like skin is non-conductive and seals the aluminum against salt spray.

3. Clamp Types: Mid vs. End

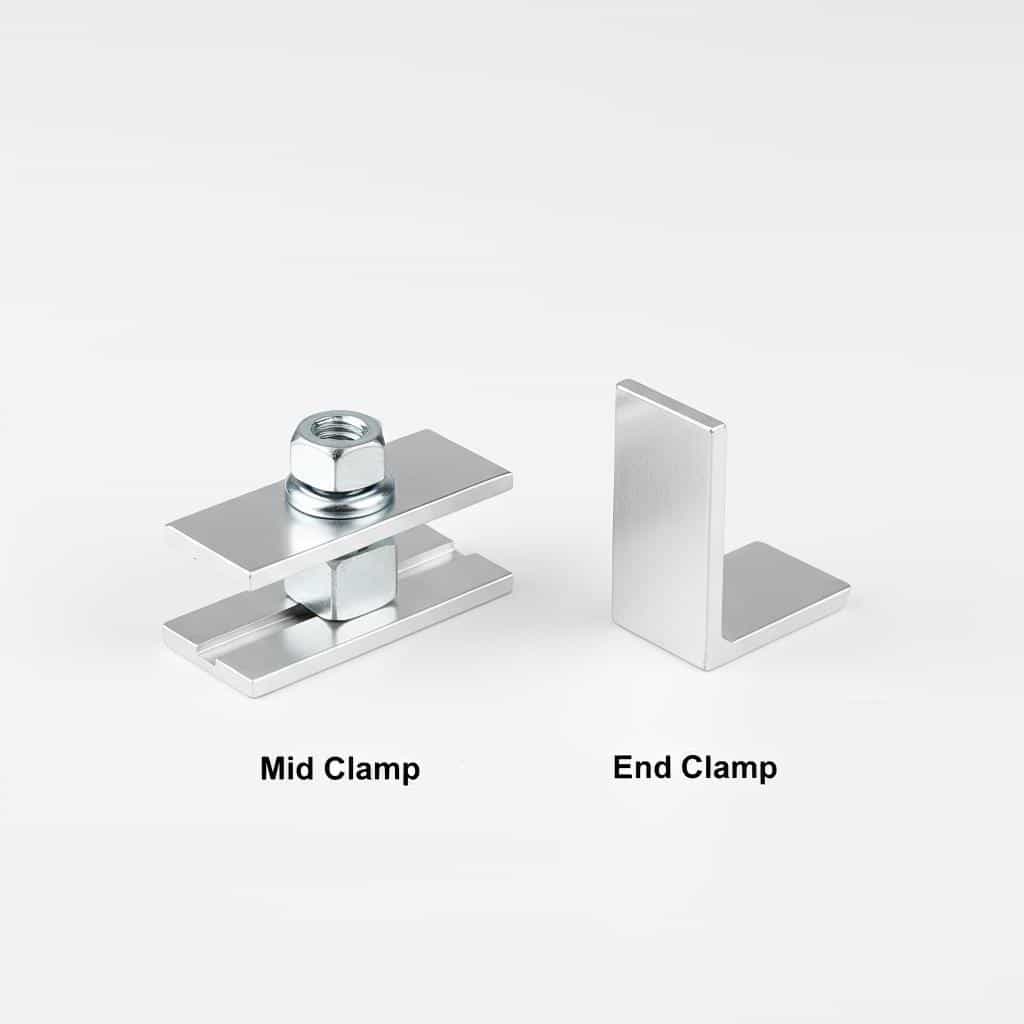

The Mid Clamp (Inter-Module): Sits between two adjacent solar panels. It holds two frames simultaneously. In a row of 20 panels, the 19 Mid Clamps do 90% of the work. Anrele Mid Clamps often include ‘Grounding Pins’ to earth the array.

The End Clamp (Termination): Secures the first and last panel. Anrele End Clamps are designed with a wide heel to prevent ‘tipping’ during tightening.

4. Engineering Math: Wind Load and Torque

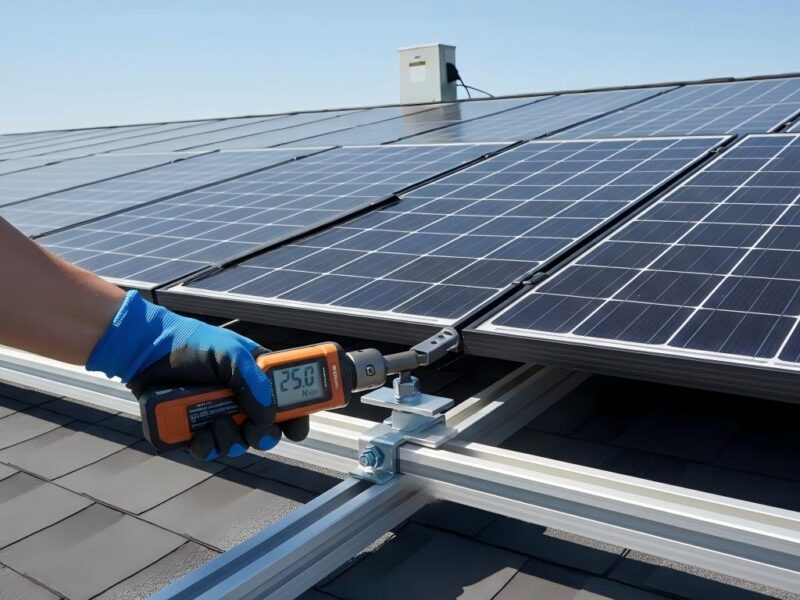

How do you ensure your clamps won’t fail in a hurricane? The Wind Load Formula: F = 0.613 × v^2 × A × Cd. But the most controllable factor is Torque. Too loose = vibration; Too tight = crushed frame.

Anrele Recommended Torque Table (AL6005 + M8 Bolt)

Wind Zone	Wind Speed (m/s)	Recommended Torque (N·m)	Max Pull-Out Force
Zone A (Inland)	< 25 m/s	10 – 12 N·m	2.5 kN
Zone B (Coastal)	25 – 35 m/s	14 – 16 N·m	3.8 kN
Zone C (Typhoon)	> 40 m/s	18 – 20 N·m	5.2 kN

5. Specialized Applications: Thin-Film & Bifacial

Thin-Film (Frameless): You cannot clamp raw glass with metal. Anrele provides clamps with EPDM Rubber Inserts to hold the glass without stress points.
Bifacial Mounting:Standard rails block the back of the cell. We offer Low-Profile Mini Rails to minimize backside shading and boost yield.

6. ROI Analysis: The Cost of Cheap Clamps

Scenario: A 1MW solar farm. Saving $750 on generic 6063 clamps might seem smart. But when a storm hits and 10 panels detach, the cost of replacement panels, labor, and downtime exceeds $6,000. Using Anrele AL6005 clamps is a cheap insurance policy for your 25-year asset.

7. Extended FAQ: Mounting & Installation

Q1: Can I reuse clamps?
A: Generally no. Stainless bolts gall into aluminum threads. For safety, always use new hardware.

Q2: Do I need a grounding washer?
A: Anrele Mid Clamps with integrated grounding pins bond the panel to the rail automatically, saving labor.

Q3: What is the max slope?
A: Clamps work on any slope (0-90°). For steep facades (>60°), we recommend 6 clamps per panel instead of 4.

Conclusion

A solar PV clamp is a small piece of aluminum with a massive responsibility. It must hold a 25kg sail against 100mph winds for 25 years. By choosing Anrele AL6005-T5 Aluminum Clamps, you are choosing structural certainty.

Ready to secure your array? Browse our catalog of Aluminum Photovoltaic Clamps or download our torque specification sheet.
